BirdieFoot
Smart Golf Swing Analysis System
Key Features
1.Foot pressure detection during the swing
2.Weight shift and balance analysis
3.Six-phase swing motion recognition

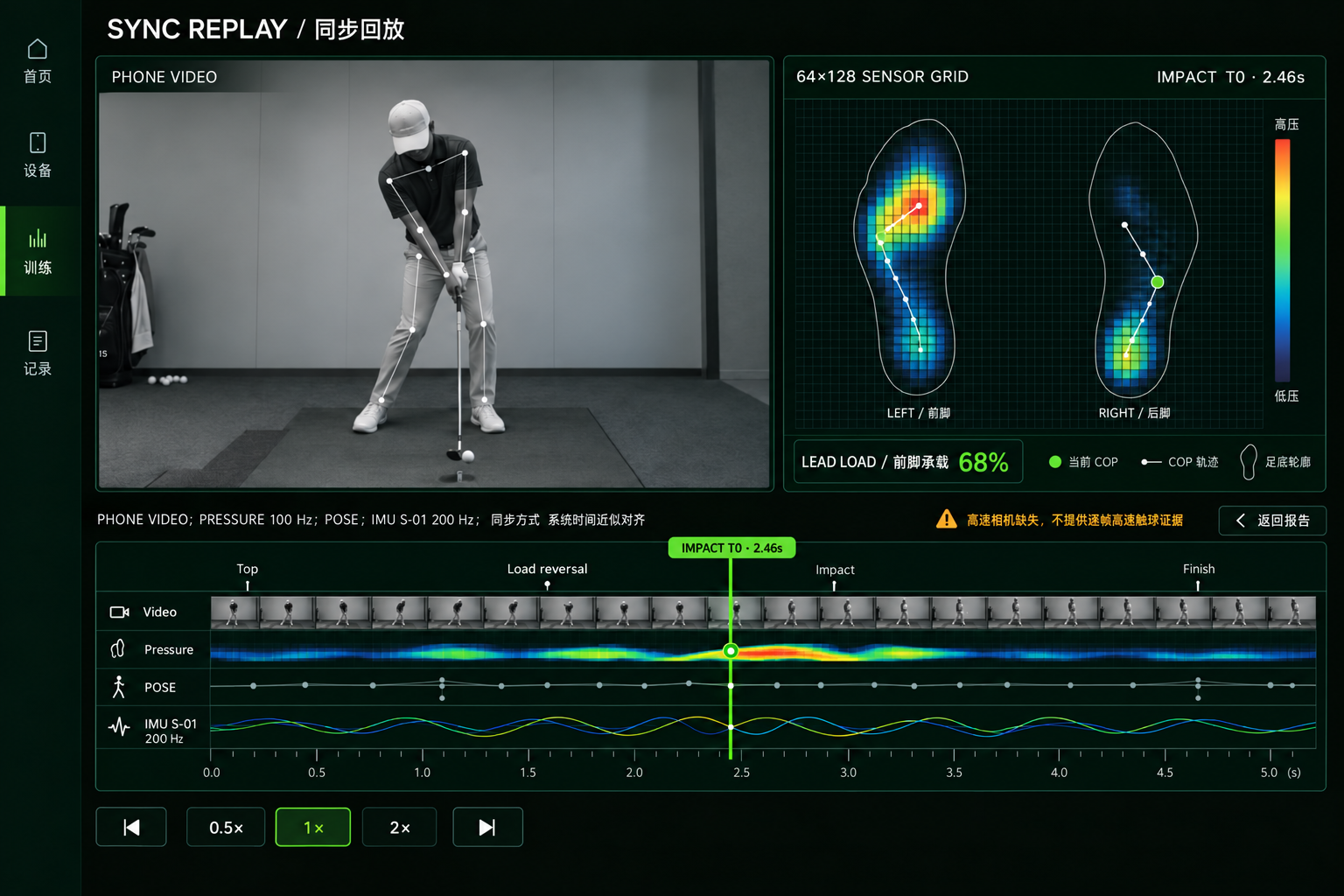

4.Synchronized video and foot pressure playback
5.Swing scoring and comparison analysis
6.AI analysis and smart training recommendations
Get A Quote
Product Introduction

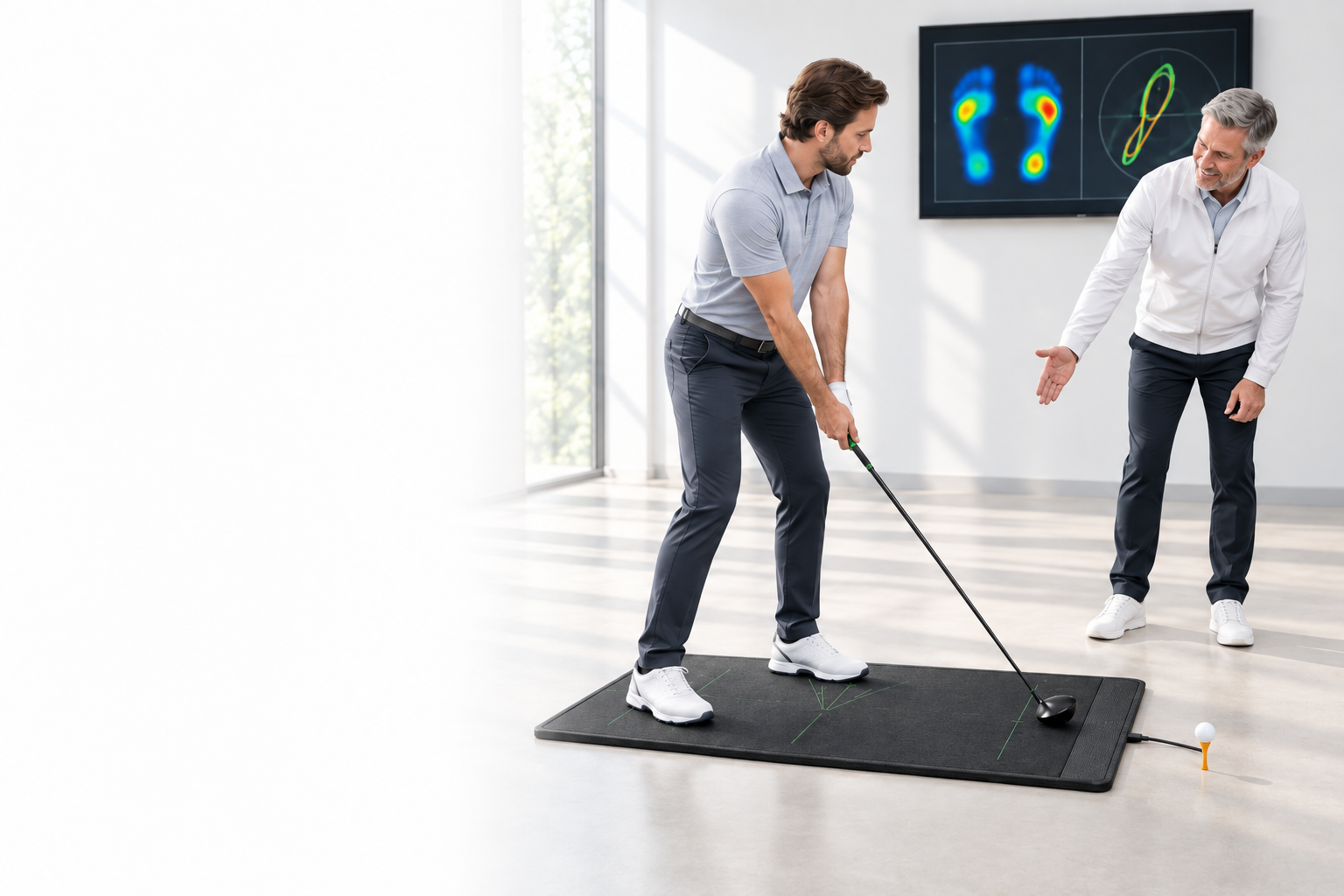

Smart Golf Swing Analysis System
Built on multi-source data including plantar pressure distribution, center-of-pressure (COP) trajectories, body posture, and synchronized video, the system constructs a personal swing training database. Through quantitative analysis of the foot pressure data of every swing, it evaluates weight shift, balance stability, push-off timing, and movement synchronization, and supports automatic comparison with the previous swing performed under the same conditions.
Using the pressure mat together with a dedicated analysis app for data collection and analysis, the system automatically identifies the six phases of the swing and instantly generates structured training reports. All data is stored locally — no account login required.
BirdieFoot Portable Detection System
Basic:
Pressure matrix: 64×96
Dimensions: 700*500*5mm
Weight: 10.5kg
Operating voltage: 5V
Sensor: resistive pressure-sensitive fabric sensor
Frame rate: approx. 76 fps
Operating system: Android
Plus:
Pressure matrix: 64×96
Dimensions: 700*500*5mm
Weight: 12.5kg
Operating voltage: 5V
Sensor: resistive pressure-sensitive fabric sensor
Frame rate: approx. 76 fps
Operating system: Android
Pro:
Pressure matrix: 64×128
Dimensions: 1000*500*5mm
Weight: 25kg
Operating voltage: 5V
Sensor: resistive pressure-sensitive fabric sensor
Frame rate: approx. 76 fps
Operating system: Android
Get A Quote

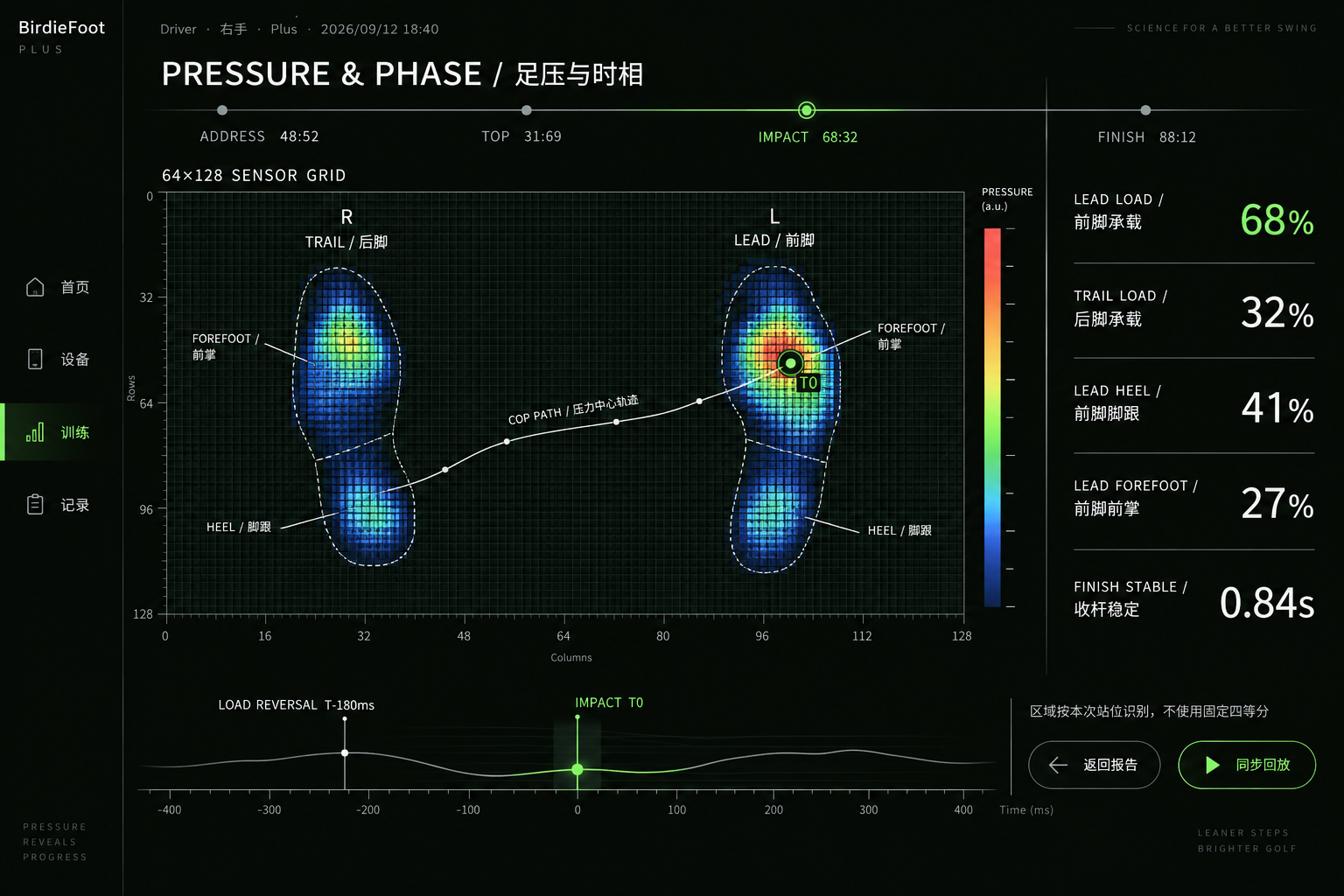

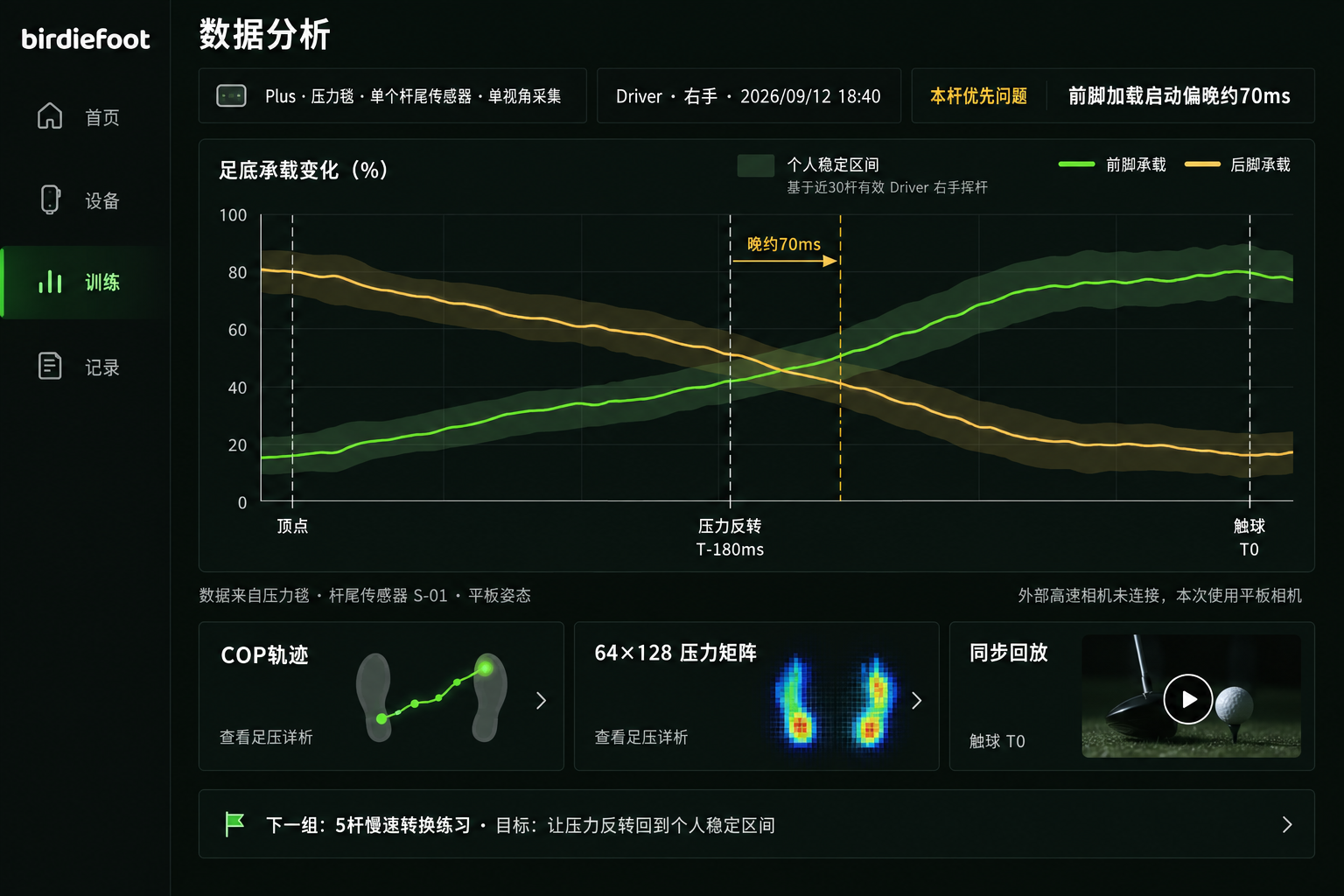

Smart Detection & Data Acquisition SystemThe system is designed for personal golf practice ranges, golf teaching and training institutions, golf equipment retail stores, indoor golf simulators, junior golf academies, and similar venues. Based on the pressure mat and the analysis app, the system collects real-time plantar pressure distribution data during both the static address stance and the dynamic swing, accurately recording left/right foot loading and the center-of-pressure trajectory. Combined with camera-based body posture detection, it captures multi-dimensional data covering foot pressure, center of gravity, and posture, providing a complete biomechanical basis for subsequent analysis.The app allows users to view pressure heat maps and detection results in real time. Simple to operate, lightweight, and portable, the system is ready for detection with just a quick connection.
Swing Training Database & AI Analysis PlatformBased on multi-source data such as foot pressure metrics, posture data, and training records, the system builds a professional swing training database. Leveraging intelligent large-model analysis technology, it processes users' swing data in depth and combines historical training records to accurately assess swing quality and progress trends, producing motion summaries, highlights, and priority improvement items, along with personalized training recommendations.In addition, the system supports local data management and JSON export, helping users and coaches securely store and review every training session.
Package Contents

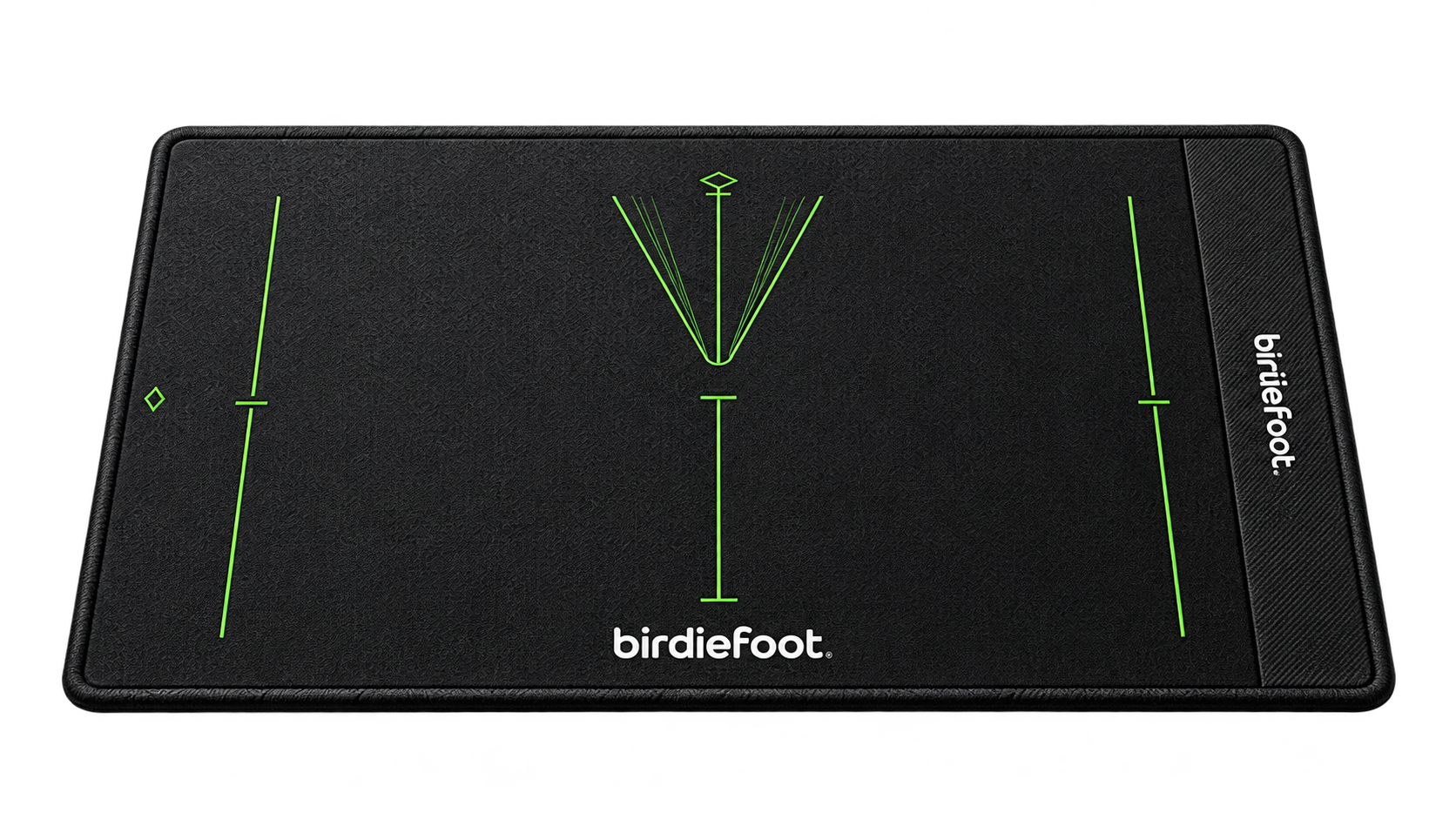

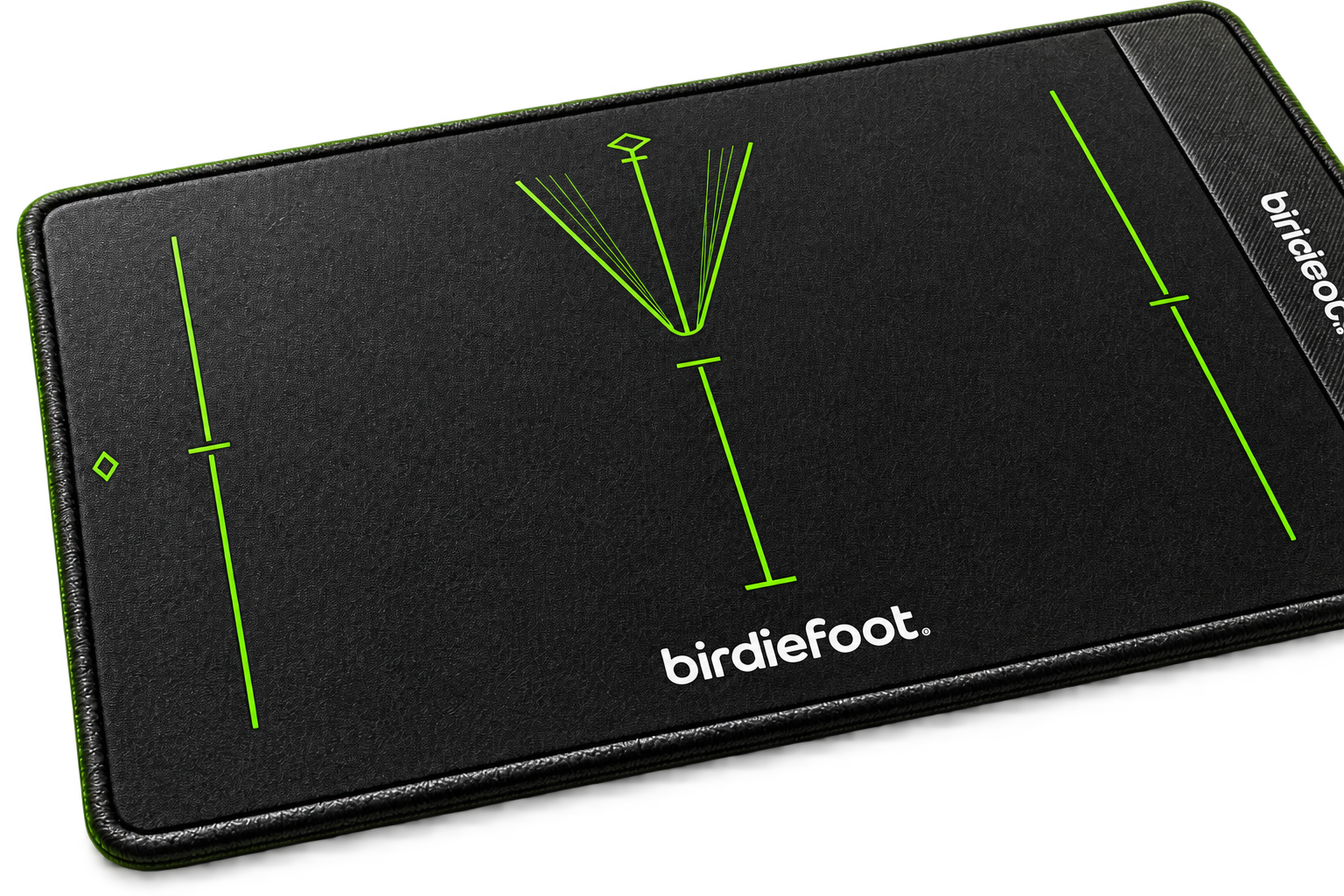

BirdieFoot Pressure Mat
USB-C Power Cable
User Manual / Installation Guide

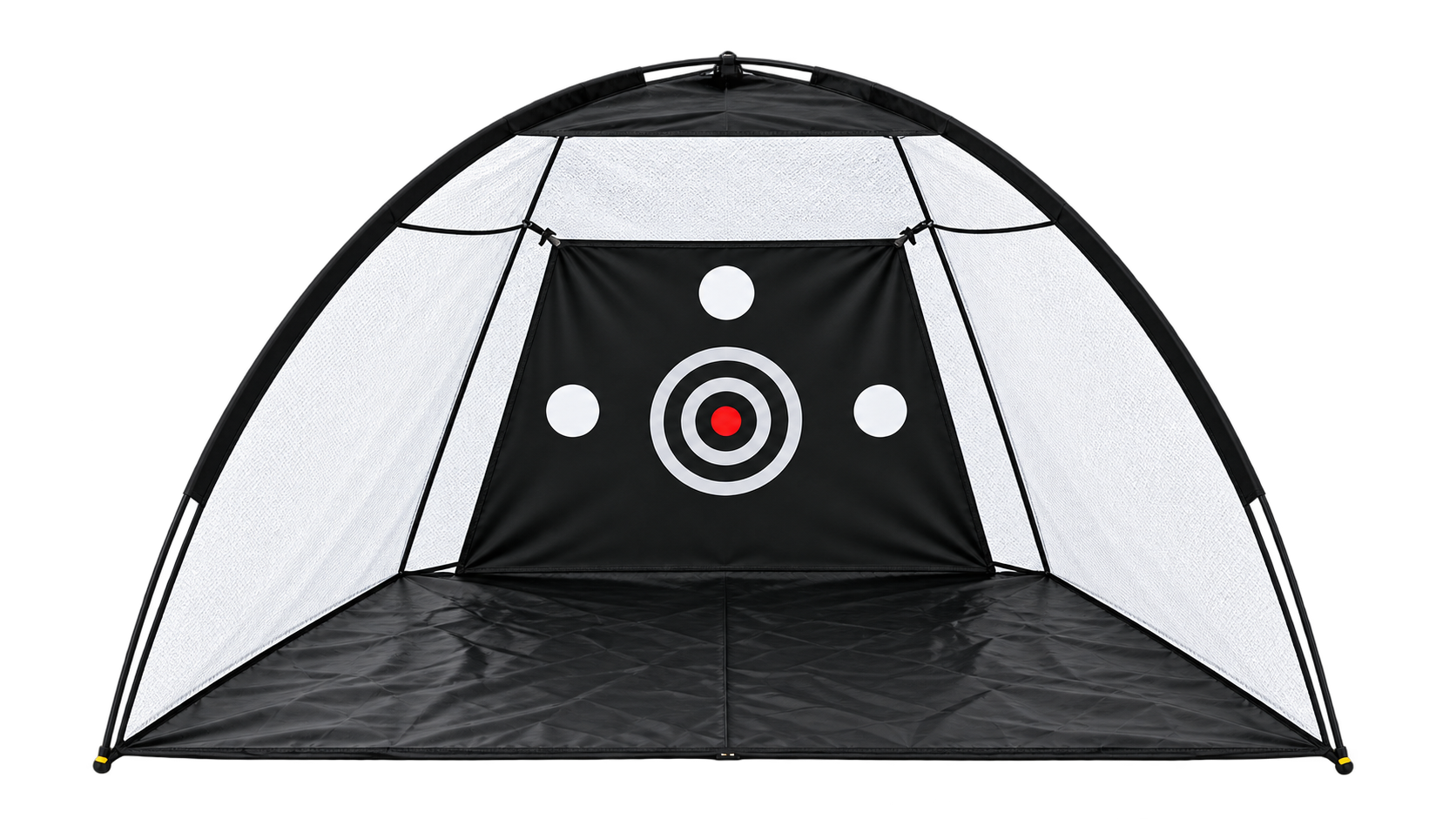

Golf Net
Golf Balls

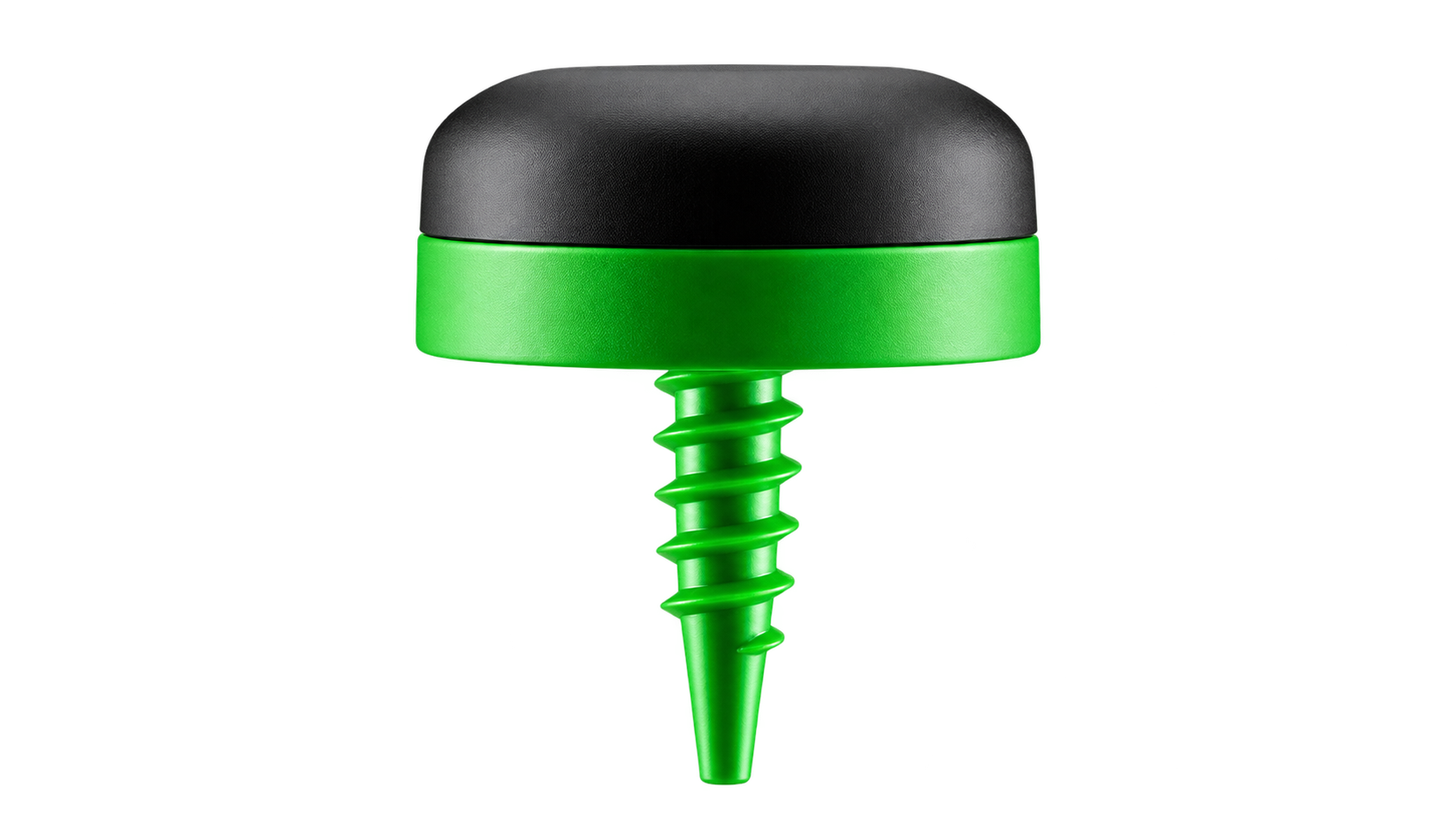

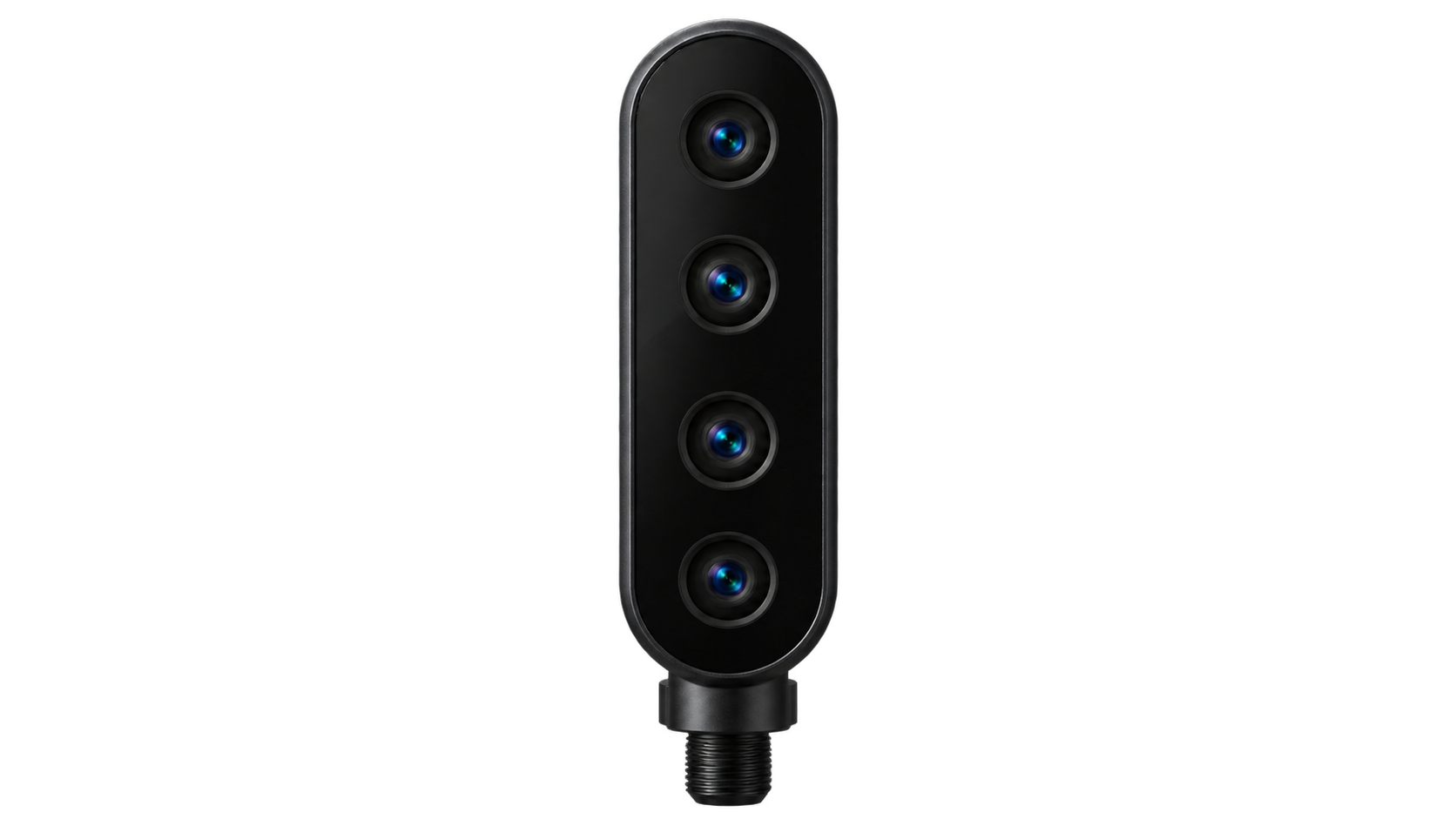

High-Speed Camera / Club Grip-End Sensor (optional for Plus and Pro versions)
